EC370

3Ph Kwhmeter via CT

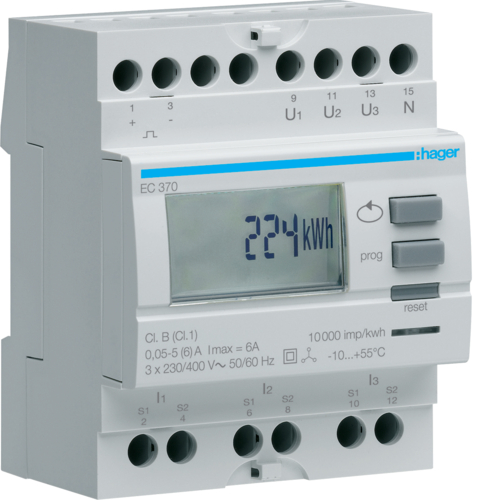

EC370 3Ph Kwhmeter via CT

EC370
Cat ref.:EC370
This product is now obsolete. However, this page remains available for information purposes. Please contact your wholesaler in order to find appropriate replacement products. Obsolete reference: EC370 Replacement reference:
Technical Characteristics
Rated operational voltage Ue:195 / 400 / 460 V
Number of poles:3 P
Connection cross-sect. flexible conductor:1 / 6mm²
Connection cross-sect. rigid cable:1,5 / 10mm²
Fixing mode:DIN rail type O (symmetrical)
Frequency:50/60 Hz
Operating temperature:-10…55 °C
Storage/transport temperature:-20…70 °C
Protection index IP:IP20
Type of pole:3P+N
Type of measuring instrument:electronical
  • EC370
    EC370 3Ph Kwhmeter via CT
    EC370
  • EC370 3Ph Kwhmeter via CT
Data is subject to errors and technical modifications.
